EngineLabBikes
...

RIDE INTO THE FUTURE

...
...

The dust and waterproof pedal-speed cadence sensor is integrated into the frame for durability and consistent performance in all conditions.

...

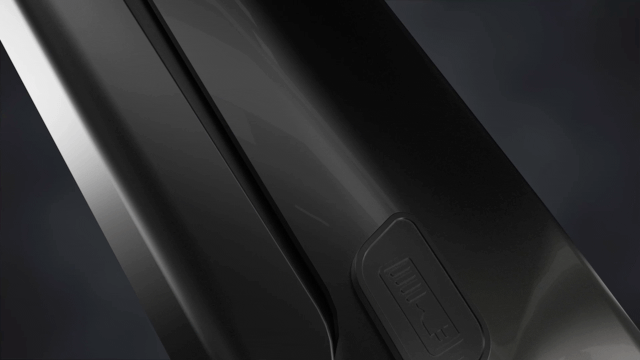

Battery is Integrated Into the downtube of the frame for a more streamlined appearance that features a built-in smart Battery Management System to regulate charging and discharging

...

Powerful and whisper-quiet and provides high-torque pedal-assist or throttle acceleration control

Move free

COMFORT

SPEED

READY TO GO

Reimagining the bicycling experience to be comfortable from the first to last mile with adjustable fit,suspension seat post, upright seating geometry,large volume puncture resistant 27.5“ × 2.25“ tires and soft,vibration absorbing touch points throughout.
Ride with five levels of pedal-assist for the cozy pedaling experience, or shift into throttle drive mode and effortlessly navigate the path ahead with top speed of 20MPH. Auto-Power Cutoff Hydraulic Braking System for Quick Stops.
Never be left in the dark again with integrated front and rear high output LED lights that run off of the motor battery and feature an extra level of safety with a reat brake light.Folding lock comes with bike with Easy Store mount

Choose free

NGN E450

NGN E450 Step thru

THE DETAILS

FRONT & REAR RACK

"Integrated front and

rear racks to

carry cargo easily"

BELT

"The carbon-reinforced

polymer belt is

maintenance-free."

BATTERY LOCK

"The battery is

lockable to

prevent theft."

Key specifications

Colors

Standard

Blue, Black

Step Thru

Red, Pearl White

Rider's Height

Standard

Medium 5'7"-5'11"     Large 5'9"-6'3"

Step Thru

Medium 5'2"-5'8"     Large 5'7"-6'1"

Battery range

Up to 60 mils

Charging time

100% recharged in 4.5 hours

Bike

Brakes

XOD hydraulic disc brake with metallic pads and automatic motor power shut off system

Brake Rotors

180mm stainless steel front and rear disc rotors, 2.3mm thick

Grip

Ergonomic lock-on anti-rotation grip

Saddle

Water resistant vacuum formed comfort saddle

Seat Post

Comfort suspension seatpost with adjustable spring and 25mm travel

Front Hub

15mm thru-axle sealed bearing aluminum alloy disc brake hub

Rim

Double wall aluminum rim, 25mm width

Spoke

Stainless with brass nipples, 13G front, 12G rear

Tire

Panasonic 27.5" x 2.25" Anti-Puncture E-Bike Tires

Mudgaurd

Full coverage aluminum alloy fenders and stays

Front Rack

Custom fit frame mounted tubular aluminum alloy rack, 20 lb load rating

Rear Rack

Custom fit tubular aluminum alloy rack, 40 lb load rating

Kick Stand

Center-mounted aluminum alloy kickstand

Front Light

Bright white 12V hardwired LED headlamp

Rear Light

Ultrabright 12V hardwired LED taillight with brake light

Extra

Folding high-security lock with easy-store mount

Electronics

Motor

500W geared rear hub motor with clutch, 80Nm maximum torque

Range

Up to 60 miles

Battery

Lockable and removeable Samsung 672Wh lithium ion battery, 3500mAh 18650 cylinder cell

Display

Large format LCD display with battery capacity indicator, assist and throttle level control, odometer, light on/off, and walk-assist mode

Charger

3A quick wall charger, UL listed 110-240V

Cadence Sensor

Integrated water and dust-proof 32-point pedal cadence speed sensor

Throttle

Thumb throttle control with 5 levels of pedal assist
